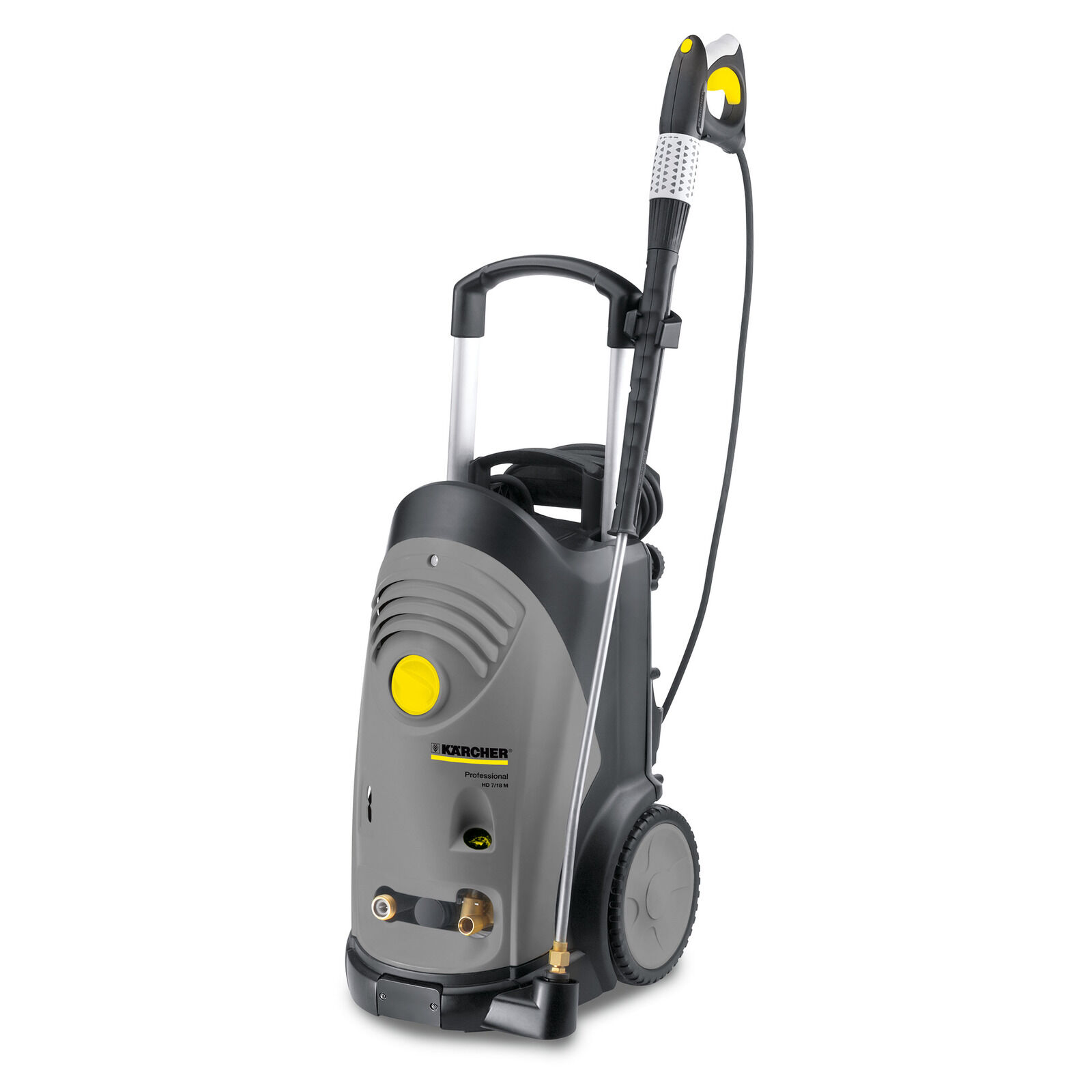

Karcher - HD 7/18-4 M 3 Phase Cold Water Pressure Washer

Karcher HD 7/18-4 M Three Phase Pressure Washer, Cold Water - 400V, 180 bar

The Karcher HD 7/18-4 M is a 400V three-phase pressure washer for cold water cleaning in commercial and industrial settings, built around a low-speed four-pole motor for intensive use. Pressure can be set anywhere from 30 to 180 bar, with a 215 bar maximum, and water flow from 240 to 700 L/h. Both are adjusted from the trigger gun through Servo Control. The Easy Press gun has a soft grip and needs less force to hold the trigger open. Detergent is added through SwitchChem, an infinitely variable dosing system with a two-way valve, so two different cleaning agents can be connected and selected as needed. The motor is air and water cooled, the connection load is 5kW, and the machine can be fed with water up to 60°C. For moving between jobs, it stands upright on large wheels that handle uneven ground, with storage for the power cord at the back and a holder for the lance. Each machine comes with a 10m high-pressure hose, a 1050mm stainless steel lance that rotates under pressure, and a triple nozzle with 0°, 25° and 40° settings.

Key Features & Benefits

• Low-Speed 4-Pole Motor: An air and water cooled three-phase motor designed for intensive commercial cleaning.
• Pressure and Flow Set at the Gun: Servo Control adjusts pressure and water volume from the trigger gun, so settings can be changed partway through a job.
• Reduced Trigger Holding Force: The Easy Press gun has a soft grip and takes less effort to hold open.
• Two-Detergent Dosing: SwitchChem gives infinitely variable dosing, and its two-way valve switches between two cleaning agents.
• Easy to Transport: Large wheels cope with uneven ground, and the upright frame is easy to push or pull. The cord stores at the rear and the lance has a built-in holder.

Application Areas

• Amenities blocks, change rooms and tiled washrooms
• Vehicles and plant, including underbody and wheel arch cleaning with the optional underbody lance
• Driveways, paths and other paved areas with an optional Karcher surface cleaner
• Drains, pipes and gutters with optional pipe cleaning and gutter cleaning accessories
• Food processing areas with optional food industry high-pressure hoses
• Needs a three-phase 400V power supply. Cold water machine, inlet water up to 60°C.

Specifications

• Brand: Karcher
• Model: HD 7/18-4 M
• Product Type: Cold water high pressure washer
• Power Supply: 3 phase, 400V, 50Hz
• Connection Load: 5kW
• Motor: 4-pole low-speed, air and water cooled
• Working Pressure: 30 to 180 bar (approx. 435 to 2610 psi)
• Maximum Pressure: 215 bar (approx. 3120 psi)
• Flow Rate: 240 to 700 L/h (4 to 11.7 L/min)
• Maximum Inlet Temperature: 60°C
• Weight (with accessories): 49kg
• Dimensions (L x W x H): 467 x 407 x 1010mm
• Included Equipment: Easy Press trigger gun with soft grip, Servo Control, 10m high-pressure hose, 1050mm rotatable stainless steel spray lance, triple nozzle (0°, 25°, 40°, manual changeover), pressure cut-off
• Country of Manufacture: Germany
• Year of Manufacture: 2013
• SKU: 1.524-220.0
