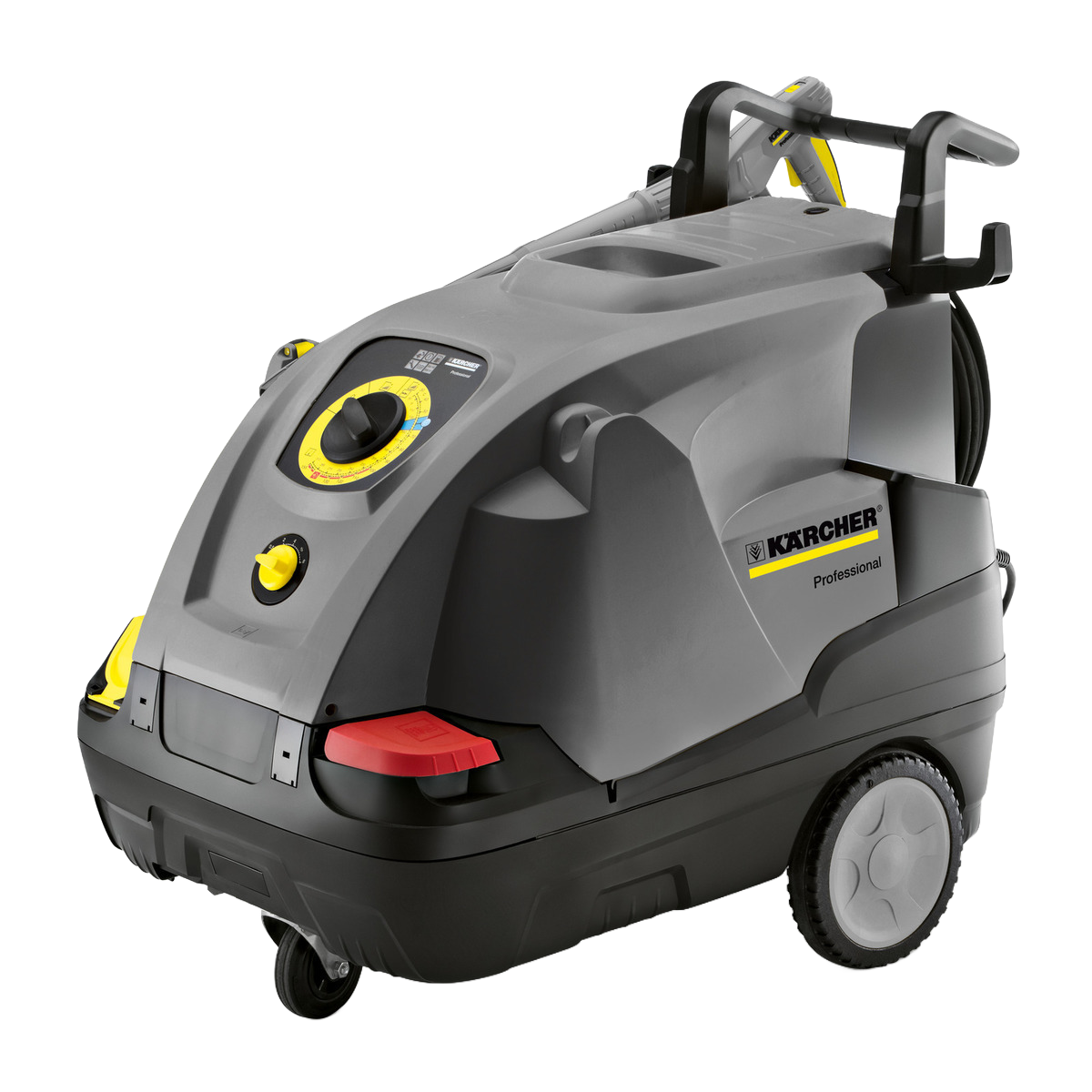

Karcher - HDS 5/12 C Hot Water Pressure Washer - Diesel, 240V

Karcher HDS 5/12 C Hot Water Pressure Washer, Diesel Heated - 240V Single Phase

The Karcher HDS 5/12 C is a diesel-heated hot water pressure washer that runs on single-phase 240V power, so it does not need a three-phase connection. It is the entry-level model in Karcher's compact hot water class, rated at 3.2kW, with a diesel burner that heats water up to 80°C. Output is 120 bar at 500 L/h, and the hot water makes it suited to grease, oil and heavy grime on vehicles and machinery. A single large selector switch controls the machine. Its eco!efficiency mode is designed for economical running over longer periods, and Karcher states it reduces fuel consumption and CO2 emissions by 20%. Diesel and detergent are carried in integrated tanks, with 15L of fuel capacity. Nozzles and tools lock away in an accessory compartment, and the hose and power cord hang on hooks built into the chassis. The jogger-style frame rolls on large wheels with a steering castor, and handles moulded into the body make it easy to manoeuvre. Supplied equipment includes an extended Easy Press trigger gun with soft grip insert, a 10m high-pressure hose, a 550mm lance and a power nozzle.

Key Features & Benefits

• Diesel-Heated Water: The onboard burner heats water up to 80°C for grease, oil and heavy grime.
• Runs on Single-Phase Power: Operates from a 240V, 50Hz supply, with no three-phase connection required.
• eco!efficiency Mode: Designed for economical running during longer jobs. Karcher states it uses 20% less fuel and produces 20% less CO2.
• Simple Controls: One large selector switch operates the whole machine.
• Onboard Tanks and Lockable Storage: Integrated diesel and detergent tanks, a lockable compartment for nozzles and tools, and hooks for the hose and cord.

Application Areas

• Car, truck and fleet washing, including engine bays
• Mechanical workshops and wash bays
• Plant and machinery cleaning
• Food processing areas with optional food industry high-pressure hoses
• Needs a single-phase 240V supply and diesel for the burner. Refuel and ventilate as set out in the operating manual.

Specifications

• Brand: Karcher
• Model: HDS 5/12 C
• Product Type: Hot water high pressure washer
• Power Supply: Single phase, 240V, 50Hz
• Power Rating: 3.2kW
• Pressure: 120 bar (12 MPa, approx. 1740 psi)
• Flow Rate: 500 L/h (approx. 8.3 L/min)
• Maximum Water Temperature: 80°C
• Fuel: Diesel
• Fuel Tank: 15L
• Fuel Consumption (full load): 3.2kg/h
• Weight: 86kg
• Dimensions (L x W x H): 1060 x 650 x 920mm
• Included Equipment: Extended Easy Press trigger gun with soft grip insert, 10m high-pressure hose (ID 6, 250 bar), 550mm spray lance, power nozzle, pressure cut-off, integrated fuel and cleaning agent tanks
• Country of Manufacture: Germany
• SKU: 1.272-215.0
